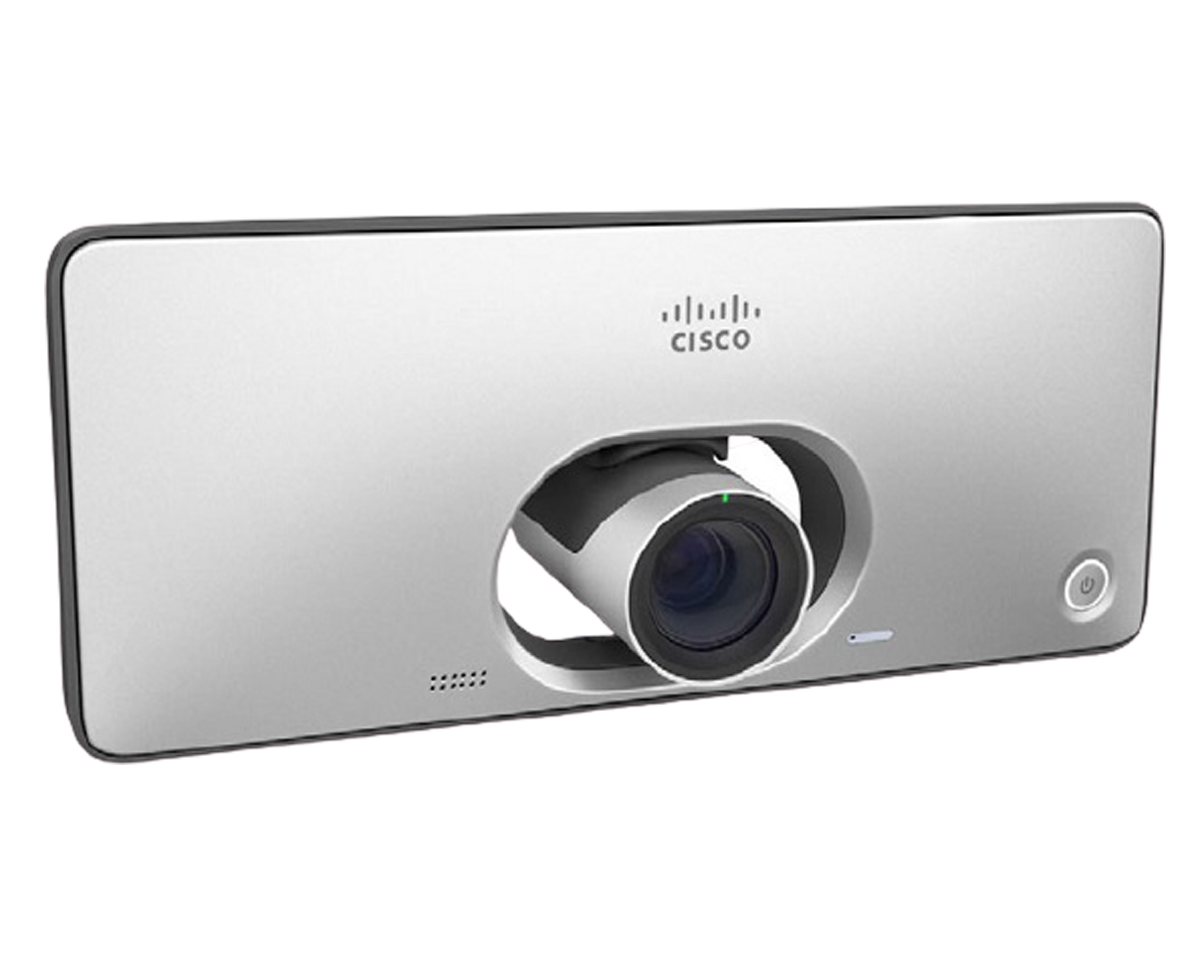

Model | CTS-SX10N-K9 |
Software compatibility | Cisco TelePresence Software Version TC 7.1 or later |
Cisco Collaboration Endpoint Software Version 8.0 or later |
Integrated HD camera | 5x zoom (2.65 optical and digital zoom) |
+5°/-25° tilt, +/-30° pan |
51.5° vertical field of view |
83° horizontal field of view |
F-value from 2.1 |
1920 x 1080 pixels progressive @ 30 fps |
Automatic or manual focus, brightness, and white balance |
Far-end camera control |
Automatic flipping of picture when upside down |
User interface | TRC6 remote control and on-screen Graphical User Interface |
Optional Cisco Touch 10 control unit |
System management | Total management using embedded Telnet, SSH, XML, and SOAP |
Remote software upload using web server, secure copy (SCP), HTTP, and HTTPS |
Remote control and on-screen menu system |
Directory services | Support for local directories (My Contacts) |
Corporate directory (through Cisco UCM and Cisco TelePresence Management Suite [TMS]) |
Server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite) |
Call History with received, placed, and missed calls with date and time |
Power | PoE enabled |
Auto-sensing power supply |
100 - 240 VAC, 50/60 Hz |
Maximum 12 watts in normal operation |
Operating temperature and humidity | 0° to 40°C (32° to 95°F) at Relative Humidity 10% - 90% (noncondensing) |
Storage and transport temperature | -20° to 60°C (60° to 140°F) at Relative Humidity 10% - 90% (noncondensing) |
SX10 codec dimensions | Width: 10.8 inches (27.5 cm) |
Height: 4.6 inches (11.7 cm) |
Depth: 3.6 inches (9.1 cm) (with max tilt downward on camera) |
Weight: 2.0 pounds (0.9 kg) |
Bandwidth | Up to 3 Mbps |
Minimum bandwidth for resolution/frame rate | 720p30 from 768 kbps |
1080p30 from 1472 kbps |
Firewall traversal | Cisco TelePresence Expressway Technology |
Video standards | H.263, H.263+, and H.264 |
Video inputs | Two video inputs (HDMI or VGA selectable through user interface) |
Supported Formats: 640x480 (VGA), 720x480, 704x576 (4CIF), 800x600 (SVGA), 848x480, 1024x768 (XGA) |
Extended Display Identification Data (EDID) |
Video output | HDMI Output Supported Formats: 1920 x 1080@60 fps (1080p60) |
VESA Monitor Power Management |
Extended Display Identification Data (EDID) |
Live video resolutions | Live Video Resolutions (Encode and Decode): 176 x 144@30 (QCIF) (Decode only), 352 x 288@30 (CIF), 512 x 288@30 (w288p), 576 x 448@30 (448p), 768 x 448@30 (w448p), 704 x 576@30 (4CIF), 1024 x 576@30 (w576p), 640 x 480@30 (VGA), 800 x 600@30 (SVGA), 1024 x 768@30 (XGA), 1280 x 768@30 (WXGA), 1280 x 720@30 (HD720p), 1920 x 1080@30 (HD1080p) |
Audio standards | 64 kbps MPEG4 AAC-LD, OPUS, G.722, G.722.1, G.711mu, G.711a, G.729ab, and G.729 |
Audio features | High-quality 20-kHz mono |
Two acoustic echo cancellers |
Automatic Gain Control (AGC) |
Automatic noise reduction |
Active lip synchronization |
Audio inputs | One internal microphone |
One external microphone, 4-pin mini-jack (Table Microphone 20 or Cisco Ceiling Microphone) |
One HDMI audio-in |
Audio outputs | One line out, mini-jack |
One HDMI, (digital main audio) |
Dual stream | H.239 (H.323) dual stream (CE8.2 or later) |
BFCP (SIP) dual stream |
Resolution up to 1080p5 (CE8.0 or later) |
Multipoint support | Cisco Ad-Hoc Conferencing (requires Cisco UCM, Cisco TelePresence Server, and Cisco TelePresence Conductor) |
Protocols | H.323, SIP |
H.323 (CE8.2 or later) |
Embedded encryption | SIP/H.323 point-to-point (H.323 with CE8.2 or later) |
Standards-based: Advanced Encryption Standard (AES) |
Automatic key generation and exchange |
Supported in dual stream |
IPv6 network support | Dual-stack IPv4 and IPv6 for DHCP, Secure Shell (SSH), HTTP, Secure HTTP (HTTPS), DNS, and Differentiated Services (DiffServ) |
Support for both static and autoconfiguration (stateless address autoconfiguration) |
Security features | Management through HTTPS and SSH |
IP administration password |
Menu administration password |
Disable IP services |
Network settings protection |
Network interfaces | One PoE-enabled LAN connector (RJ-45) 100-Mbit |
Other interfaces | One USB port for future usage |
One Micro USB port for debugging |
